Customized Thermal Vacuum Chamber

SKU: Thermal Conditioning Unit

Thermal Vacuum Chamber by Telstar (1 more product)
Download Datasheet Request Information

Note : Your request will be directed to Telstar.

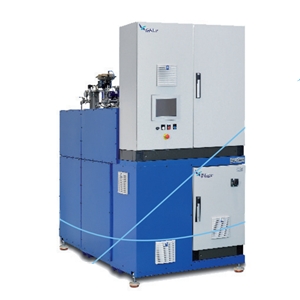

The Thermal Conditioning Unit from Telstar is a Thermal Vacuum Chamber with Mass 1000 Kg, 1800 Kg, 2500 Kg, Pressure Vaccum 2 bar, Power Consumption 9 to 260 kW, Heating Power 3 to 54 kW, Operating Temperature -180 to 180 Degree C. More details for Thermal Conditioning Unit can be seen below.

Product Specifications

Product Details

  • Part Number
    Thermal Conditioning Unit
  • Manufacturer
    Telstar
  • Description
    Customized Thermal Vacuum Chamber

General Parameters

  • Space Heritage
    Yes
  • Mass
    1000 Kg, 1800 Kg, 2500 Kg
  • Pressure Vaccum
    2 bar
  • Power Consumption
    9 to 260 kW
  • Heating Power
    3 to 54 kW
  • Operating Temperature
    -180 to 180 Degree C
  • Dimension
    1750 x 900 x 1800 mm, 2110 x 1270 x 1940 mm, 2200 x 1400 x 1940 mm

Technical Documents
