12 TB Space-Qualified Solid State Recorder

SKU: 2080

Solid State Recorder by Airbus (2 more products)

Note : Your request will be directed to Airbus.

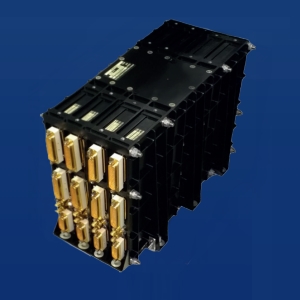

2080 Image

The 2080 from Airbus is a Solid State Recorder with a total memory capacity of 12 TB and a user memory capacity of 8 TB. This recorder has up to 3 memory slices and an aggregated record plus replay data rate of up to 10Gbits/s per slice. It has a minimum NAND flash endurance of 60K program/ erase cycles and a residual bit error rate of less than 5.3 x 10-17 error/bit/day for the mission. The recorder requires a primary input supply of 22-38 V (unregulated redundant power) and has a power consumption of 44 W. It uses a high-performance SCOC3 System-On-Chip based on the LEON3 sparc v8 core and features CCSDS Packet Telemetry Standard Transmission over virtual channels. The 2080 has a mass of 11 Kg and measures 365 x 220 x 230 mm.

Product Specifications

Product Details

  • Part Number
    2080
  • Manufacturer
    Airbus
  • Description
    12 TB Space-Qualified Solid State Recorder

General Parameters

  • Orbit
    LEO
  • Space Heritage
    Yes
  • Memory Type
    Non-Volatile Flash Memory
  • Recording Data Rate
    up to 10Gbits/s per slice
  • Total Memory Capacity
    12 Tb
  • User Memory Capacity
    8 Tb
  • Mass
    11 Kg
  • Memory Extension
    32 Tb
  • Power Consumption
    44 W
  • Supply Voltage
    22 to 28 V
  • Operating Temperature
    -25 to 60 Degree C
  • Processor
    Rad-Hard Processor
  • Residual Bit Error Rate
    5.3 x 10-17 error/bit/day
  • Lifetime
    12 Years
  • Shock
    1000 g at 1600 Hz
  • Vibration
    24 g sine 15 Grms random out of plane
  • Dimension
    365 x 220 x 230 mm
