Small satellite solar panels

Satellite Solar Panel by ISISPACE
Request Information

Note : Your request will be directed to ISISPACE.

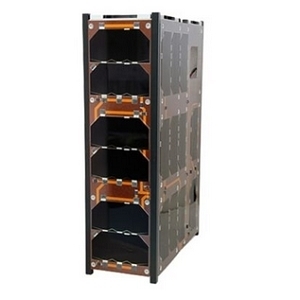

Small satellite solar panels Image

The Small satellite solar panels from ISISPACE is a Satellite Solar Panel with Power Delivered 2.3 to 17 W, Output Voltage 3 V (5 V and 8 V on demand), Mass 50 to 300 gms, Operating Temperature -40 to 125 Degree C. More details for Small satellite solar panels can be seen below.

Product Specifications

Product Details

  • Part Number
    Small satellite solar panels
  • Manufacturer
    ISISPACE
  • Description
    GaAs Triple-junction solar cells from AZUR Space Body mounted on ISIS Aluminium or Carbon panels

General Parameters

  • Satellite Type
    SmallSat, CubeSat, NanoSat
  • Solar Cell Material
    GaAs
  • Orbit
    LEO
  • Cell Efficiency
    0.3
  • Power Delivered
    2.3 to 17 W
  • Output Voltage
    3 V (5 V and 8 V on demand)
  • Mass
    50 to 300 gms
  • Space Heritage
    Yes
  • Operating Temperature
    -40 to 125 Degree C
  • Dimension
    1.8 mm (Top/Bottom), 2.5 mm (Side)
