3 Megapixel (2048 x 1536) Color CMOS Camera

SKU: ECAM-C30

Download Datasheet Request Information

Note : Your request will be directed to Malin Space Science Systems.

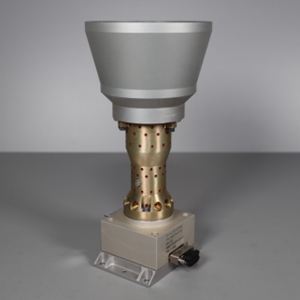

ECAM-C30 Image

The ECAM-C30 from Malin Space Science Systems is a Satellite Camera with Camera Pixel QXGA, VGA, 3 MP, Frame Rate QXGA 2.5 fps, HD1080p 4 fps, HD720 8 fps, VGA 20 fps, Input Voltage 5 V, Power Consumption 1.75 W (idle), 2.5 W (imaging), Mass 256 g. More details for ECAM-C30 can be seen below.

Product Specifications

Product Details

  • Part Number
    ECAM-C30
  • Manufacturer
    Malin Space Science Systems
  • Description
    3 Megapixel (2048 x 1536) Color CMOS Camera

General Parameters

  • Camera Pixel
    QXGA, VGA, 3 MP
  • Frame Rate
    QXGA 2.5 fps, HD1080p 4 fps, HD720 8 fps, VGA 20 fps
  • Input Voltage
    5 V
  • Power Consumption
    1.75 W (idle), 2.5 W (imaging)
  • Interface
    SpaceWire
  • Lifetime
    10 Years
  • Mass
    256 g
  • Resolution
    2048 (H) x 1536 (V), 2048 (H) x 1080 (V), 1280 (H) x 720 (V), 640 (H) x 480 (V)
  • Optical Format
    1/2 Inch
  • Pixel Scan Rate
    10 Mpixel/s
  • Pixel Size
    3.2 µm x 3.2 µm
  • Sensor Type
    CMOS
  • Spectral Band
    RGB Bayer
  • Spectral Range
    400 to 750 nm
  • Operating Temperature
    -20 to 40 Degree C
  • Note
    Dimension : 78 x 58 x 44 mm (W x L x H)
