L Band RHCP 1518 to 1559 MHz

SKU: L Band 1&2

Download Datasheet Request Information

Note : Your request will be directed to Printech Circuit Laboratories.

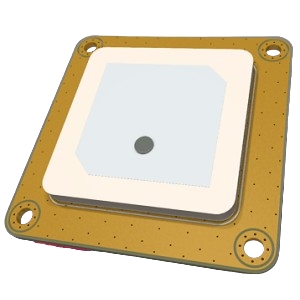

The L Band 1&2 from Printech Circuit Laboratories is a Satellite Antenna with Frequency Range 1518 to 1559 MHz, Antenna Gain 4.5 to 4.8 dBiC (Nadir), 0.9 to 1.2 dBiC (±60 Deg), Power Consumption 2 W, Beamwidth 113 to 116 Degree (HPBW), Mass 102 g. More details for L Band 1&2 can be seen below.

Product Specifications

Product Details

  • Part Number
    L Band 1&2
  • Manufacturer
    Printech Circuit Laboratories
  • Description
    L Band RHCP 1518 to 1559 MHz

General Parameters

  • Frequency Band
    L Band
  • Frequency Range
    1518 to 1559 MHz
  • Antenna Gain
    4.5 to 4.8 dBiC (Nadir), 0.9 to 1.2 dBiC (±60 Deg)
  • Polarization
    RHCP
  • Power Consumption
    2 W
  • Beamwidth
    113 to 116 Degree (HPBW)
  • VSWR
    1.20:1
  • Mass
    102 g
  • Connector
    SSMCX
  • Space Heritage
    Yes
  • Dimension
    96.88 x 103.88 x 10.5 mm
