LTCC Low Pass Filter from DC to 11000 MHz

SKU: LFCN-113

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

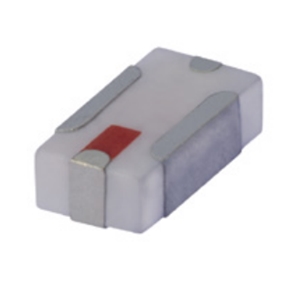

LFCN-113 Image

The LFCN-113 from Mini Circuits is a Space Qualified RF Filter with Frequency DC to 11 GHz, Cut Off Frequency 12250 MHz, Stop Band Frequency 14500 to 20000 MHz, Power 8 W, Insertion Loss 2.5 dB. Tags: Surface Mount. More details for LFCN-113 can be seen below.

Product Specifications

Product Details

  • Part Number
    LFCN-113
  • Manufacturer
    Mini Circuits
  • Description
    LTCC Low Pass Filter from DC to 11000 MHz

General Parameters

  • Filter Type
    Low Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    DC to 11 GHz
  • Cut Off Frequency
    12250 MHz
  • Stop Band Frequency
    14500 to 20000 MHz
  • Power
    8 W
  • Insertion Loss
    2.5 dB
  • Rejection
    17 to 40 dB
  • VSWR
    1.60:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, VHF/UHF Transmitters / Receivers, Test & Measurement
  • Dimension
    3.2 x 1.60 mm

Technical Documents
