LTCC High Pass Filter from 1080 to 4000 MHz

SKU: HFCN-1000

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

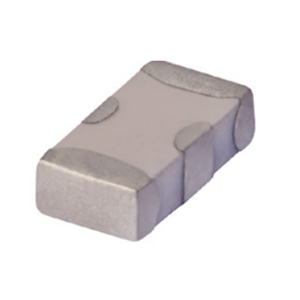

HFCN-1000 Image

The HFCN-1000 from Mini Circuits is a Space Qualified RF Filter with Frequency 1.18 to 4 GHz, Cut Off Frequency 1000 MHz, Stop Band Frequency DC to 740 MHz, Power 7 W, Insertion Loss 1.4 to 2 dB. Tags: Surface Mount. More details for HFCN-1000 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFCN-1000
  • Manufacturer
    Mini Circuits
  • Description
    LTCC High Pass Filter from 1080 to 4000 MHz

General Parameters

  • Filter Type
    High Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    1.18 to 4 GHz
  • Cut Off Frequency
    1000 MHz
  • Stop Band Frequency
    DC to 740 MHz
  • Power
    7 W
  • Insertion Loss
    1.4 to 2 dB
  • Rejection
    20 to 40 dB
  • VSWR
    1.50:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Sub-Harmonic Rejection, Transmitters/receivers, Lab use
  • Dimension
    3.20 x 1.60 mm

Technical Documents
