1.5 W Ceramic Band Pass Filter from 3.7 to 4.5 GHz

SKU: BFCN-4100

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

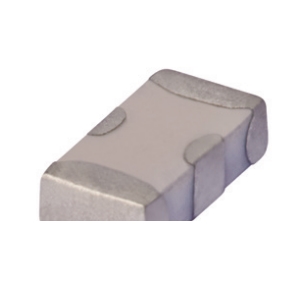

BFCN-4100 Image

The BFCN-4100 from Mini Circuits is a Space Qualified RF Filter with Frequency 3.7 to 4.5 GHz, Center Frequency 400 MHz, Stop Band Frequency DC to 9000 MHz, Bandwidth 800 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-4100 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-4100
  • Manufacturer
    Mini Circuits
  • Description
    1.5 W Ceramic Band Pass Filter from 3.7 to 4.5 GHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    3.7 to 4.5 GHz
  • Center Frequency
    400 MHz
  • Stop Band Frequency
    DC to 9000 MHz
  • Bandwidth
    800 MHz
  • Power
    1.5 W
  • Insertion Loss
    1.4 to 2 dB
  • Rejection
    20 to 25 dB
  • VSWR
    1.50:1, 2.00:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers
  • Dimension
    0.12 x 0.6 x 0.4 inches
