Surface Mount RF Band Pass Filter from 2920 to 3100 MHz

SKU: BFCN-3010

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

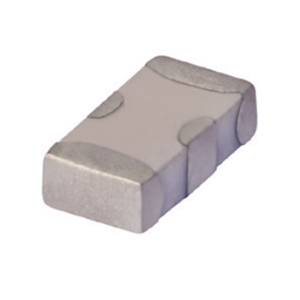

BFCN-3010 Image

The BFCN-3010 from Mini Circuits is a Space Qualified RF Filter with Frequency 2.92 to 3.1 GHz, Center Frequency 3010 MHz, Stop Band Frequency DC to 6600 MHz, Bandwidth 180 MHz, Power 1.5 W. Tags: Surface Mount. More details for BFCN-3010 can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCN-3010
  • Manufacturer
    Mini Circuits
  • Description
    Surface Mount RF Band Pass Filter from 2920 to 3100 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Frequency
    2.92 to 3.1 GHz
  • Center Frequency
    3010 MHz
  • Stop Band Frequency
    DC to 6600 MHz
  • Bandwidth
    180 MHz
  • Power
    1.5 W
  • Insertion Loss
    6 dB
  • Return Loss
    6 to 12.7 dB
  • Rejection
    20 to 30 dB
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Harmonic Rejection, Transmitters / Receivers, Point-to-Point Communications
  • Dimension
    3.2 x 1.6 mm

Technical Documents
