Band Pass Filter from 950 to 2200 MHz

SKU: BFCG-162W

Space Qualified RF Filter by Mini Circuits (195 more products)
Download Datasheet Request Information

Note : Your request will be directed to Mini Circuits.

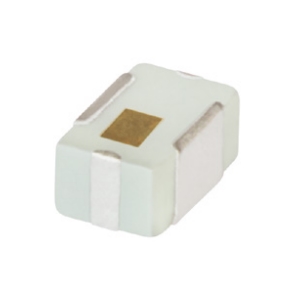

BFCG-162W Image

The BFCG-162W from Mini Circuits is a Space Qualified RF Filter with Frequency 950 MHz to 2.2 GHz, Center Frequency 1575 MHz, Stop Band Frequency DC to 5000 MHz, Power 0.5 W, Insertion Loss 1.8 to 3 dB. Tags: Surface Mount. More details for BFCG-162W can be seen below.

Product Specifications

Product Details

  • Part Number
    BFCG-162W
  • Manufacturer
    Mini Circuits
  • Description
    Band Pass Filter from 950 to 2200 MHz

General Parameters

  • Filter Type
    Band Pass Filter
  • Configuration
    Ceramic Filter
  • Frequency
    950 MHz to 2.2 GHz
  • Center Frequency
    1575 MHz
  • Stop Band Frequency
    DC to 5000 MHz
  • Power
    0.5 W
  • Insertion Loss
    1.8 to 3 dB
  • Rejection
    20 to 30 dB
  • VSWR
    2.00:1
  • Impedance
    50 Ohms
  • Operating Temperature
    -55 to 100 Degree C
  • Storage Temperature
    -55 to 100 Degree C
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    LTCC
  • Application
    Wireless Communication, Harmonic Rejection, Transmitters / Receivers
  • Dimension
    2 x 1.25 mm

Technical Documents
