0.88 to 1.19 V, 25 A, Fast Recovery Diode

SKU: HFB25HJ20

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

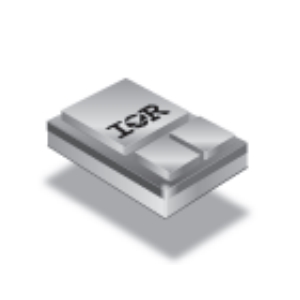

HFB25HJ20 Image

The HFB25HJ20 from Infineon Technologies is a Space Qualified Diode with Forward Current 25 A, Forward Voltage 0.88 to 1.19 V, Reverse Current 10 to 250 uA, Reverse Voltage 200 V, Repetitive Peak Reverse Voltage 200 V. Tags: Surface Mount. More details for HFB25HJ20 can be seen below.

Product Specifications

Product Details

  • Part Number
    HFB25HJ20
  • Manufacturer
    Infineon Technologies
  • Description
    0.88 to 1.19 V, 25 A, Fast Recovery Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    25 A
  • Forward Voltage
    0.88 to 1.19 V
  • Reverse Current
    10 to 250 uA
  • Reverse Voltage
    200 V
  • Repetitive Peak Reverse Voltage
    200 V
  • Non-Repetitive Peak Forward Current
    150 A
  • Recovery Time
    28 to 35 ns
  • Industry
    Space
  • RoHS Compliant
    Yes
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    Reduced RFI and EMI, Reduced Snubbing, Extensive Characterization of Recovery Parameters, Hermetic, Surgace Mount
  • Package Type
    Surface Mount
  • Package
    SMD-0.5
