70V Space-Qualified Silicon Schottky Diode

SKU: BAS70-T1 (ES)

Space Qualified Diode by Infineon Technologies (102 more products)
Download Datasheet Request Information

Note : Your request will be directed to Infineon Technologies.

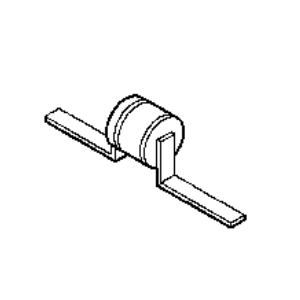

BAS70-T1 (ES) Image

The BAS70-T1 (ES) from Infineon Technologies is a Space Qualified Diode with a forward current of 70 mA. This hermetically-sealed diode has a reverse voltage of 70 V and a surge forward current of 85 mA. It has a power dissipation of 250 mW and a junction temperature of 150 °C. The diode has a total capacitance of 2 pF and a differential forward resistance of 30 ohms. It is ESA space-qualified and is ideal for general-purpose applications such as high-speed switching, circuit protection, voltage clamping, and high-level detecting and mixing.

Product Specifications

Product Details

  • Part Number
    BAS70-T1 (ES)
  • Manufacturer
    Infineon Technologies
  • Description
    70V Space-Qualified Silicon Schottky Diode

General Parameters

  • Section
    Power Diode
  • Types of Diode
    Schottky Barrier Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    0.070 A
  • Forward Voltage
    0.3 to 1 V
  • Reverse Current
    0.1 to 2 µA
  • Reverse Voltage
    70 V
  • Non-Repetitive Peak Forward Current
    0.085 A
  • Industry
    Space
  • Temperature operating range
    -55 to 150 Degree C
  • Applications
    High-level detecting and mixing, Voltage Clamping, Circuit Protection, High-speed switching
  • Package Type
    Stud Mount
