  5. CHA6356-QXG

21.2 to 23.6 GHz Power Amplifier

SKU: CHA6356-QXG

Download Datasheet Request Information

Note : Your request will be directed to United Monolithic Semiconductors.

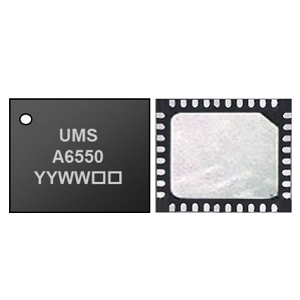

CHA6356-QXG Image

The CHA6356-QXG from United Monolithic Semiconductors is a RF Amplifier with Frequency 21.2 to 23.6 GHz, Small Signal Gain 20 dB, Noise Figure 4.5 dB, IP3 42 dBm, IP3 15.8 W. Tags: Surface Mount, Power Amplifier. More details for CHA6356-QXG can be seen below.

Product Specifications

Product Details

  • Part Number
    CHA6356-QXG
  • Manufacturer
    United Monolithic Semiconductors
  • Description
    21.2 to 23.6 GHz Power Amplifier

General Parameters

  • Type
    Power Amplifier
  • Configuration
    IC/MMIC/SMT
  • Application
    Point-To-Point, Radio
  • Frequency
    21.2 to 23.6 GHz
  • Small Signal Gain
    20 dB
  • Noise Figure
    4.5 dB
  • Gain Control Range
    15 dB
  • IP3
    42 dBm
  • IP3
    15.8 W
  • Saturated Power
    2.23 W
  • Input Power
    20 dBm
  • Input Power
    0.1 W
  • PAE
    22%
  • Return Loss
    14 to 18 dB
  • Input Return Loss
    18 dB
  • Dynamic Range
    30 dB
  • Supply Voltage
    6 V
  • Current Consumption
    1.3 A
  • Transistor Technology
    pHEMT
  • Technology
    GaAs
  • Package Type
    Surface Mount
  • Package
    QFN 5x6
  • Dimensions
    5 x 6 mm
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 150 Degree C
  • RoHS
    Yes
