High Frequency Low Noise Amplifier from 4 to 8 GHz

SKU: BXHF1060

Download Datasheet Request Information

Note : Your request will be directed to Spectrum Control.

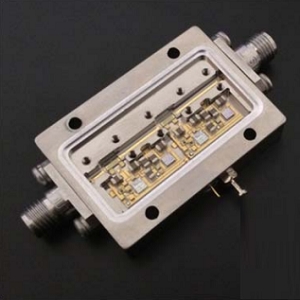

BXHF1060 Image

The BXHF1060 from Spectrum Control is a RF Amplifier with Frequency 4 to 8 GHz, Gain 39 to 40 dB, Noise Figure 1.8 to 2.5 dB, P1dB 0.04 to 0.05 W, IP2 31 dBm. Tags: Module with Connectors, Low Noise Amplifier. More details for BXHF1060 can be seen below.

Product Specifications

Product Details

  • Part Number
    BXHF1060
  • Manufacturer
    Spectrum Control
  • Description
    High Frequency Low Noise Amplifier from 4 to 8 GHz

General Parameters

  • Type
    Low Noise Amplifier
  • Frequency
    4 to 8 GHz
  • Gain
    39 to 40 dB
  • Noise Figure
    1.8 to 2.5 dB
  • P1dB
    0.04 to 0.05 W
  • IP2
    31 dBm
  • IP2
    1.259 W
  • IP3
    25 dBm
  • IP3
    0.316 W
  • Input Power
    13 dBm
  • Input Power
    0.02 W
  • Impedance
    50 Ohms
  • Reverse Isolation
    50 dB
  • VSWR
    1.50:1, 2.00:1
  • Input VSWR
    1.50:1, 2.00:1
  • Output VSWR
    1.50:1, 2.00:1
  • Supply Voltage
    12 to 15 V
  • Current Consumption
    220 to 240 mA
  • Package Type
    Module with Connectors
  • Dimensions
    2.37 x 1.06 x 0.3 Inches
  • Connectors
    SMA, SMA - Female
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 85 Degree C
  • RoHS
    Yes
