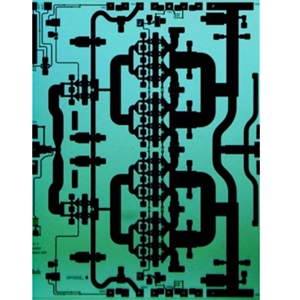

GaN Power Amplifier from 27 to 30 GHz

SKU: APN292

Download Datasheet Request Information

Note : Your request will be directed to Northrop Grumman Corporation.

The APN292 from Northrop Grumman Corporation is a RF Amplifier with Frequency 27 to 30 GHz, Power Gain 11 to 14.8 dB, Small Signal Gain 19 to 21 dB (Linear), P1dB 13.8 to 16.21 W, Saturated Power 18.621 to 44.669 W. Tags: Die, Power Amplifier. More details for APN292 can be seen below.

Product Specifications

Product Details

  • Part Number
    APN292
  • Manufacturer
    Northrop Grumman Corporation
  • Description
    GaN Power Amplifier from 27 to 30 GHz

General Parameters

  • Type
    Power Amplifier
  • Configuration
    IC/MMIC/SMT
  • Application
    Point-to-Point, Point-to-Multipoint, Radio
  • Frequency
    27 to 30 GHz
  • Power Gain
    11 to 14.8 dB
  • Small Signal Gain
    19 to 21 dB (Linear)
  • P1dB
    13.8 to 16.21 W
  • Saturated Power
    18.621 to 44.669 W
  • Return Loss
    -23.5 to -2 dB
  • Input Return Loss
    -23.5 to -3 dB
  • Output Return Loss
    -15 to -2 dB
  • Supply Voltage
    24 V
  • Current Consumption
    520 to 2100 mA
  • Transistor Technology
    HEMT
  • Technology
    GaN
  • Package Type
    Die
  • Dimensions
    3.3 x 4.1 mm
  • Space Qualified
    Yes
