Optical Communications Terminal for Space-Based Applications

SKU: CONDOR Mk3

Satellite Laser Communication Terminal by Mynaric (1 more product)
Request Information

Note : Your request will be directed to Mynaric.

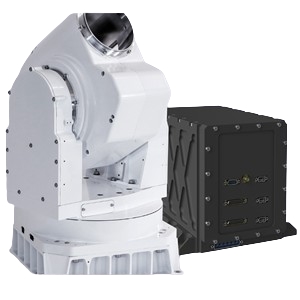

CONDOR Mk3 Image

The CONDOR Mk3 from Mynaric is a Satellite Laser Communication Terminal with Range 6500 km, Operational Wavelength 1536 to 1553 nm, Aperture 80 mm, Data Rate 313 Mbps to 2.5 Gbps, Supply Voltage 22 to 38 Vdc (Input). More details for CONDOR Mk3 can be seen below.

Product Specifications

Product Details

  • Part Number
    CONDOR Mk3
  • Manufacturer
    Mynaric
  • Description
    Optical Communications Terminal for Space-Based Applications

General Parameters

  • Orbit
    LEO
  • Range
    6500 km
  • Operational Wavelength
    1536 to 1553 nm
  • Aperture
    80 mm
  • Data Rate
    313 Mbps to 2.5 Gbps
  • Supply Voltage
    22 to 38 Vdc (Input)
  • Transmit Power
    4 W
  • Azimuth Field of Regard
    ±175 Degrees
  • Elevation Field of Regard
    -60 to 85 Degrees
  • Dimension
    OH : 372 x 282 x 257 mm, OCC : 158 x 170 x 207 mm
