QPL ESCC 3009 and CECC Surface Mount MLCC

SKU: ESCC 3009 Space Level Multi-Layer Ceramic Capacitors

Space Qualified Capacitor by Kyocera AVX (14 more products)
Download Datasheet Request Information

Note : Your request will be directed to Kyocera AVX.

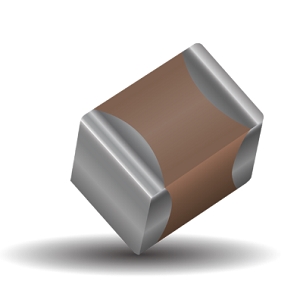

ESCC 3009 Space Level Multi-Layer Ceramic Capacitors Image

The ESCC 3009 Space Level Multi-Layer Ceramic Capacitors from Kyocera AVX is a Space Qualified Capacitor with Capacitance 1000 pF, Voltage 100 to 500 V, Reverse Voltage 1.5 to 2.5 UR, Operating Temperature -55 to 125 Degree C. More details for ESCC 3009 Space Level Multi-Layer Ceramic Capacitors can be seen below.

Product Specifications

Product Details

  • Part Number
    ESCC 3009 Space Level Multi-Layer Ceramic Capacitors
  • Manufacturer
    Kyocera AVX
  • Description
    QPL ESCC 3009 and CECC Surface Mount MLCC

General Parameters

  • Capacitor Type
    Chip Leaded Capacitor, Ceramic Capacitor, Multi-Layer Ceramic Capacitor
  • Space Standard
    ESCC 3009, ESA-3009008, ESA-3009023, ESA-3009009, ESA-3009010, ESA-3009011
  • Capacitance
    1000 pF
  • Voltage
    100 to 500 V
  • Tolerance
    ±1%, ±2%, ±5%, ±10%, ±20%
  • Reverse Voltage
    1.5 to 2.5 UR
  • Dielectric Material
    NP0, X7R, 2C1
  • Operating Temperature
    -55 to 125 Degree C
  • RoHS Complaint
    Yes
  • Termination
    Ag, Pd, Pt, Nickel Barrier + Tin Lead Finish
  • Form Factor
    0805, 1206, 1210, 1812, 2220
  • Dimension
    6.2 x 5.5 x 2.8 mm
  • Application
    Paramount
